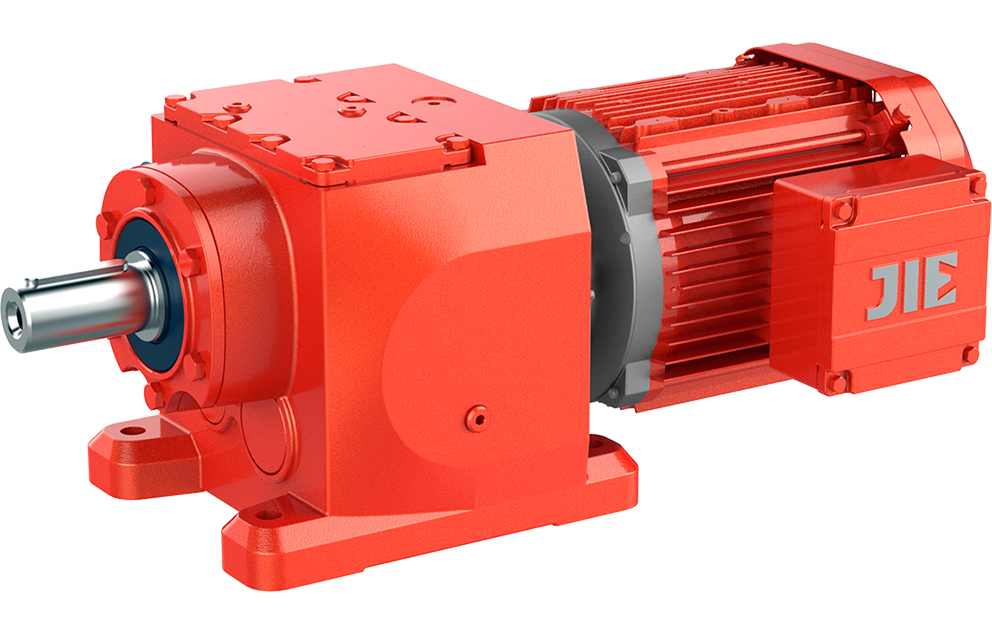

| 1 | Enterprise Code | J – JIE Corp | 2 | Product Code | RTR – Helical Geared Motor
RTF – Parallel Shaft-Helical Geared Motor RTK – Helical-Bevel Geared Motor RTS – Helical-Worm Geared Motor |
|
| 3 | Installation type | No Code – Feet-mounted
F – Flange-mounted F – Feet and Flange-mounted M – Flange-mounted with extended bearing housing X – Single-stage Feet-mounted XF – Single-stage Flange-mounted |
4 | Gear Unit Size | 69 – Gear Unit Size 69 | |
| 5 | Flange Size | I – No Code – No Flange or Only One Flange or The Smallest Flange
II – Second Bigger Flange Ill – Biggest Flange |
6 | Electric Motor | D – Three Phase Asynchronous Motor (IP54)
DN/DU/DH – Energy efficiency rating IE3/ IE4 / IE5 YB – -Flame-proof Three Phase Asynchronous Motor YGP – Table Roller Three Phase Asynchronous Motor YZP – Metallurgy Hoist Frequency Variable Motor YD – -Multi Speed Three Phase (IP54) |
|
| 7 | Frame Size | 80 – Motor Center Height 80mm | 8 | Stator Length | S, M, L | |
| 9 | Number of Poles | 4 – 4 Poles | 10 | Brake | No Code – No Brakes
BE – Brakes |
|
| 11 | Brake Release | No Code – No Brake Release
HF – Screw release(lock in the brake release position) Brake Release HR – handle release(automatic braking position) |
12 | Thermal Protection | No Code – No Thermistor
TF – Thermistor Sensor TF – Thermistor protection (PTC thermistor) TH – Thermostat protection (Bimetal switch) |
|
| 13 | Ratio | 128.97 – Ratio 128.97 | 14 | Mounting Position | M1 – Mounting Position M1 | |
| 15 | Terminal Box Position | No Code – Terminal Box position is 0° 180° – Terminal Box position is 180° |
||||
