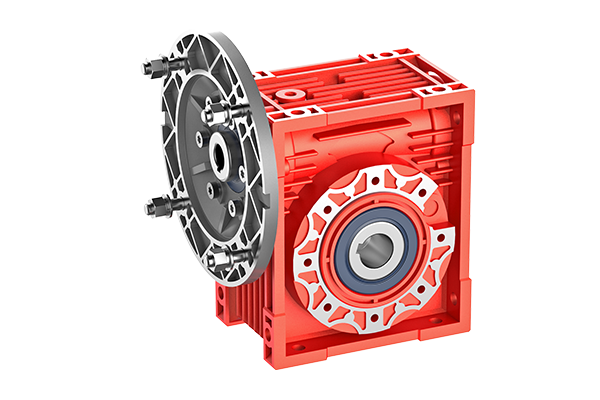

JRSTD IEC Worm Gear Units

JRSTD IEC Worm Gear Units

Product Highlight
Size: 25~150
Ratio: 5~100
Input power: 0.08~20HP
Output torque: 23~15565 lb-in
Download Catalog
Ordering Information：

1 Enterprise Code J – JIE Corp 2 Product Code RST – universal installation worm gear reducer (Metric)
RWN – universal installation worm gear reducer (Imperial)
3 Unit structure Non-code – Single

E – Double

 4 Connector of input shaft Non-code – Single input shaft

B – Double shaft input

DB – Shaft input with motor flange input

D – with motor flange
5 Product specification 110 – Single step center distance

63/130 – Double step center distance

 6 Ratio 100
7 Mounting position Download tables 8 Output flange Download tables
9 Accessories A – Single output shaft

B – Double output shaft

C – Base plate

D – Protective cover

E – Torque Arm

 10 Flange specification 90 – Motor specification

B5, B14 – Motor flange structure

No-code – No flange input
